Product Description

• SI - 20
  (Type) (Panel)
•

• Type: SW as mechanical switch. / SI　 as infrared proximity.
• Specifications:
  10/12/15/18　as single switch without panel.
  20/22/25　　 as panel with dimensions of 115x39x26(mm).
  60/62/65/68　as panel with dimensions of 115x70x26(mm).
  80/82/85/88　as panel with dimensions of 86x86x26(mm).
• Example: SI-25 infrared switch with panel for the door frame.

Features

• Infrared type:
•

• Strong and durable SUS304 stainless steel panel design which resists strong acid and alkali.

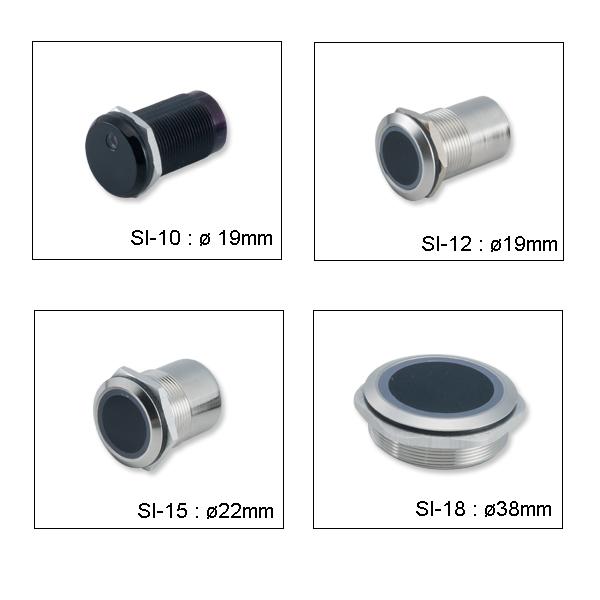

• SI-10 as mini infrared detector for access control push button auto-control detection.
• Suitable for hollow door frame and electrical box use. Voltage :DC12V~24V±10%.
• Specially designed to prevent any interference from other infra-red.
• The diagram shows world universal use.
• The front of the detector is waterproof design.
• Adjustable proximity range (4~15cm). Stable proximity range.
• Door opening time is able to set Trigger state (0.5~20sec) or Toggle mode output.
• Operation temperature range: -10℃~70℃.Humidity 85%Rh max.
• Contact rating: 1A@30VDC N.O./N.C. Output.
• Dimensions:
  SI-20：115X39X26(mm)
  SI-60：115X70X26(mm)
  SI-80：86X86X26(mm)
• Weight:
  SI-10: 10g
  SI-12: 21g
  SI-15: 24g
  SI-18: 50g
  SI-20: 75g
  SI-60: 105g
  SI-80: 100g

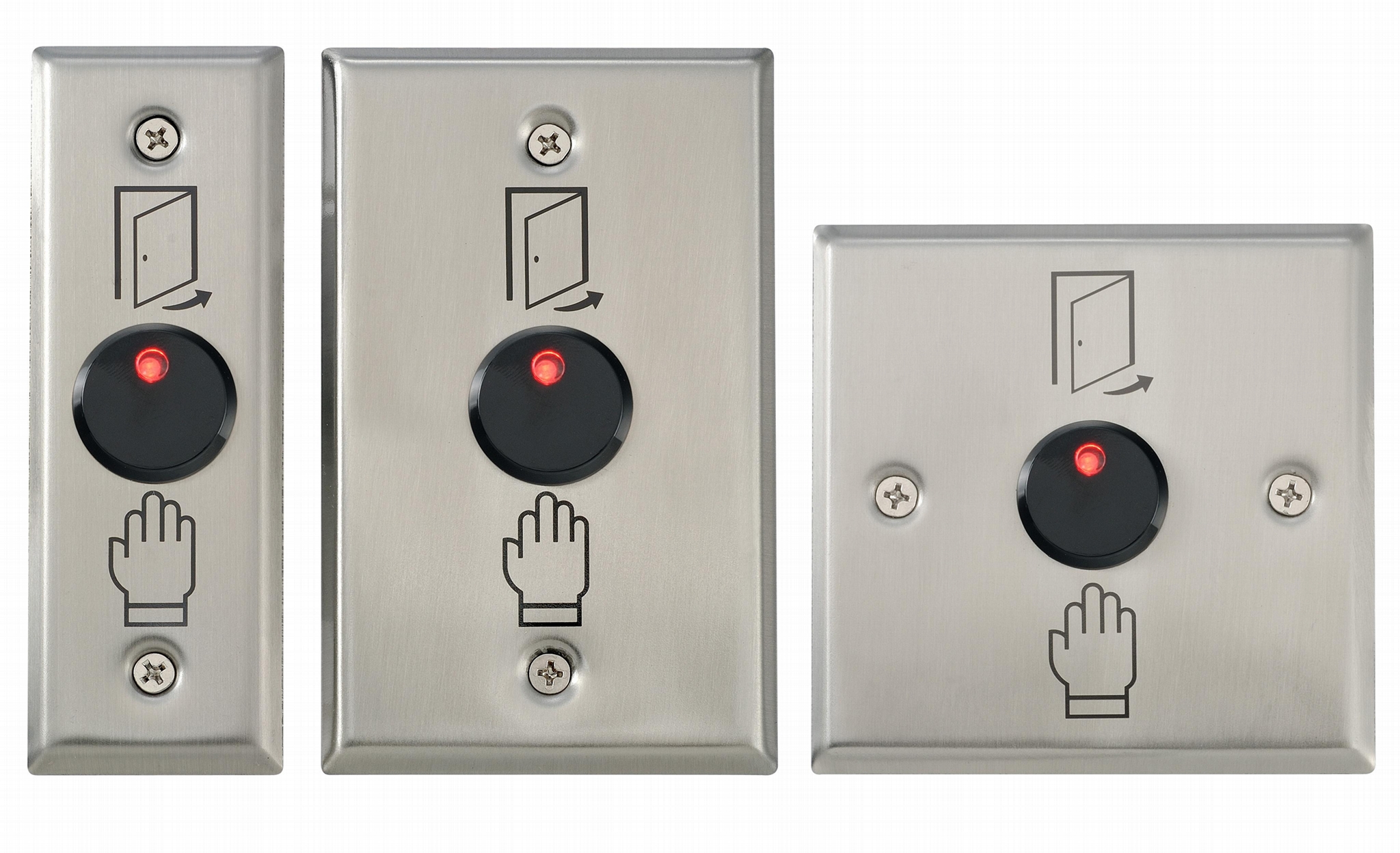

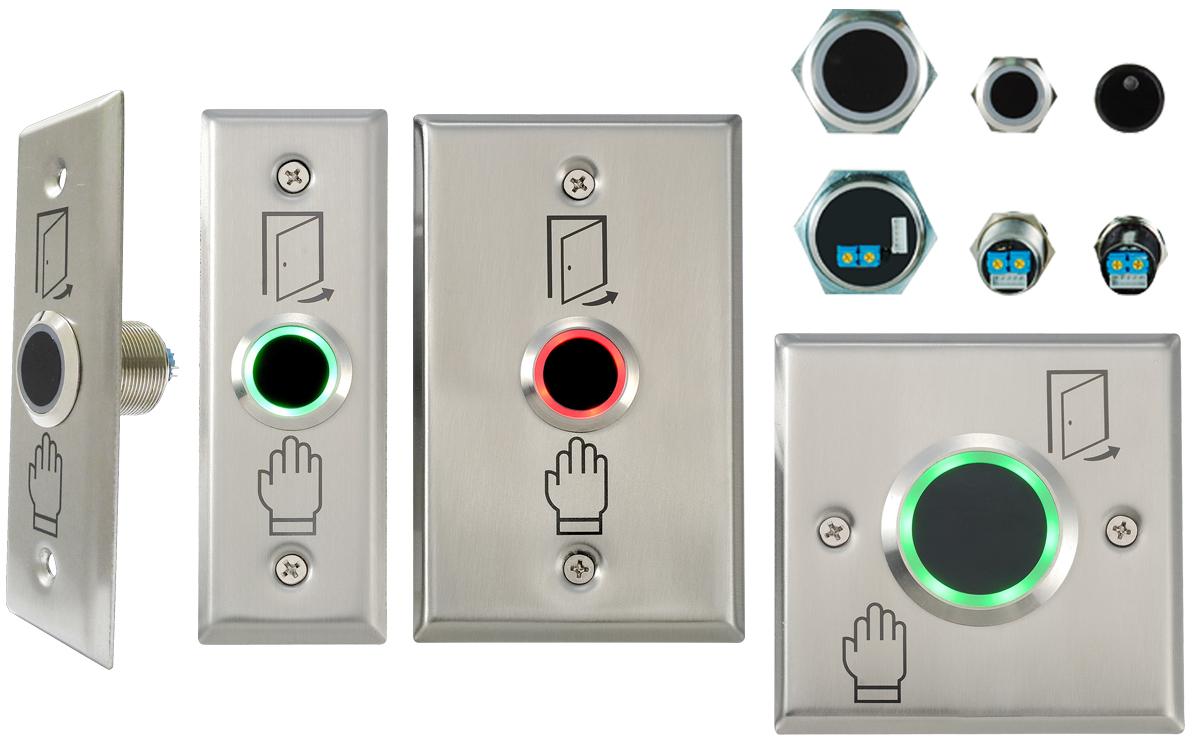

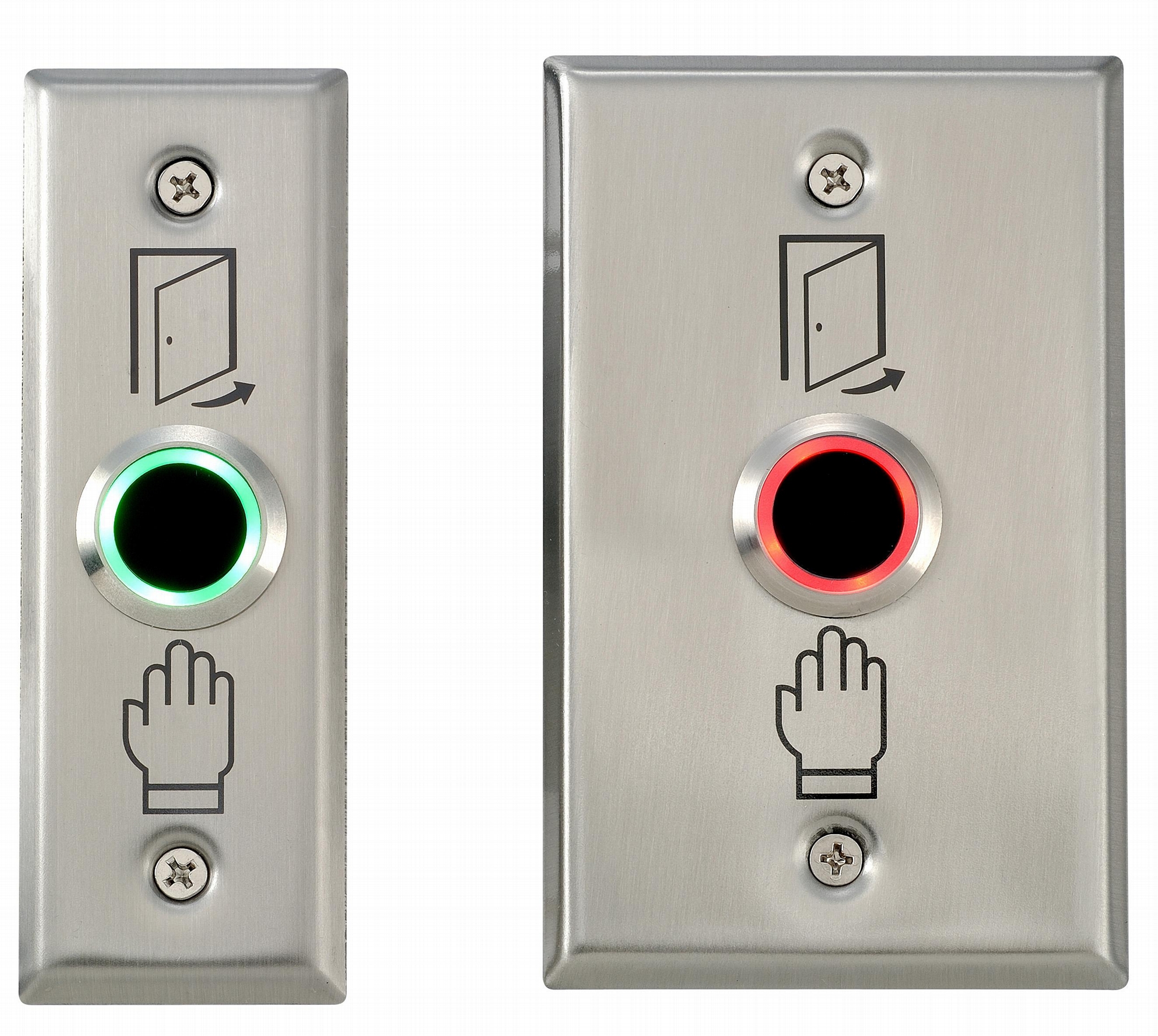

Product Image
