Door Handle Magnetic Lock Build-in delay time and lock monitor output

Door Handle Magnetic Lock Build-in delay time and lock monitor output

Model No.︰BL-200/BL-210

Brand Name︰SOCA

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

Features

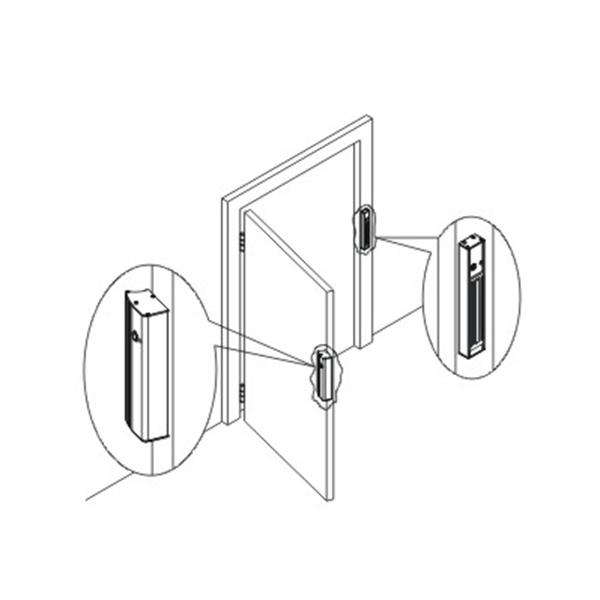

  • Install at the center of the door leaf to prevent deformation whenever it is locked or unlock.
  • Standalone operation when power is on and it does not need to be controlled by proximity reader.
  • Build-in delay time and door open or door close state detection output point (500mA: N.C./ N.O.).
  • Power Supply: DC12V or DC24V (adjustable)
  • Operation current: 500mA@12V or 250mA@24V
  • Holding force:250kg (600lbs)
  • Suitable for 90° open aluminum or wooden door.
  • Door lock delay time: 0/ 2.5/ 5/ 9 seconds available to set.
  • Build-in delay time and lock monitor output.
  • Operation temperature: 0~60℃; Humidity: 85%Rh max.

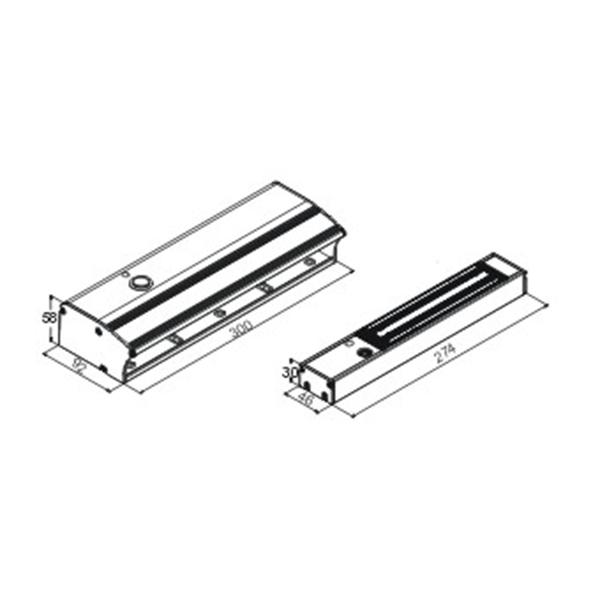

  • Dimensions: handle:300mm(L) x 92mm(W) x 58mm(D) /Body: 274mm(L) x 46mm(W) x 30mm(D)
  • Weight:3000g
  • Certification: CE

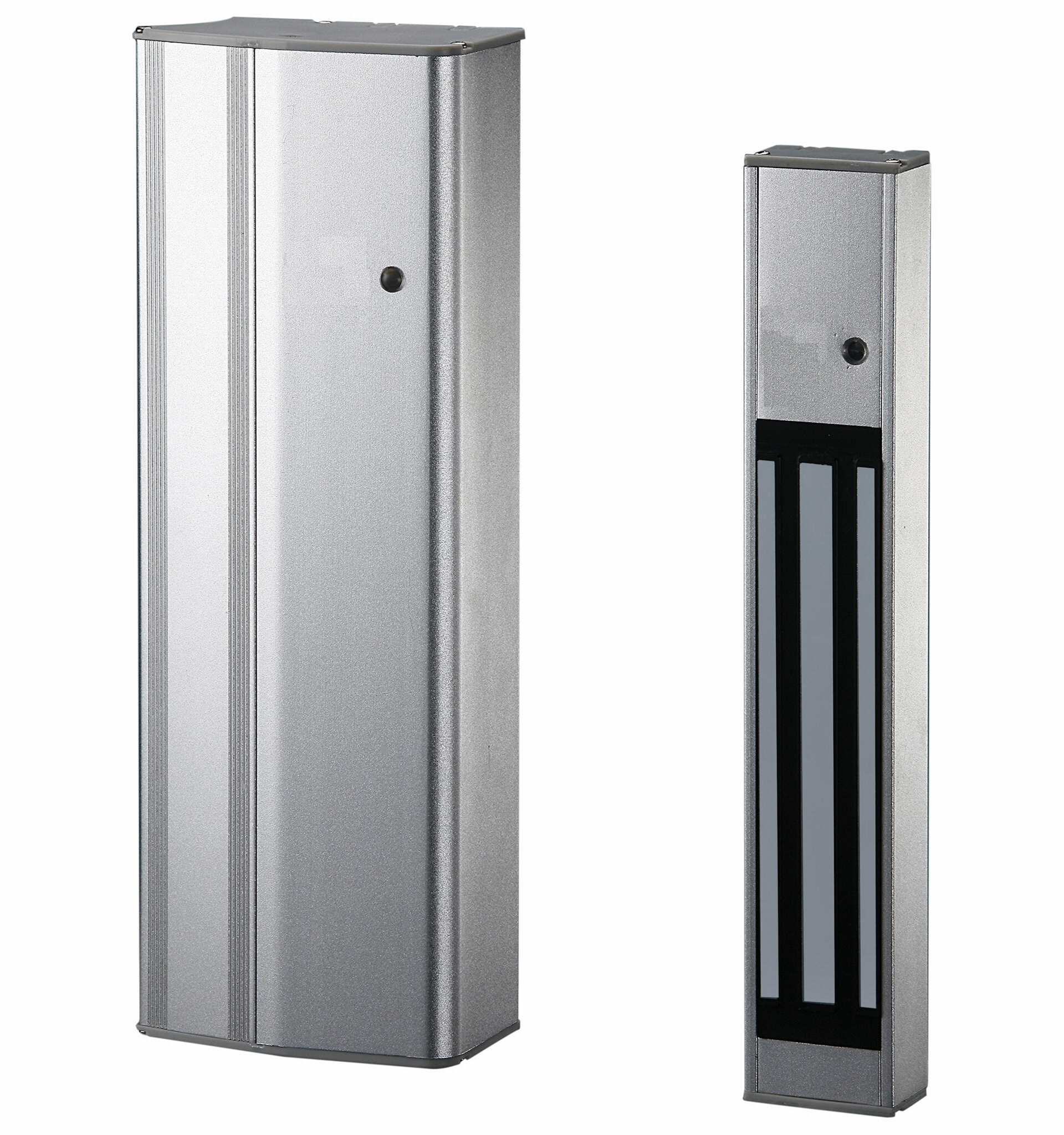

Product Image
