Product Description

Features

• Waterproof design. Tight structure design of silicone washer. Durable and strong weather resistance.
• Master card is required to set functions for standalone type of the access control reader. Single card registration , batch deletion and other functions are available.
• Anti-tamper function. Alarm will be activated if the unit is being tampered or moved.
• Duress code installation. If user is being held as hostage, specific password can be entered and help signal will be dispatched immediately.
• Tricolored BAR and a set of external indicator light (Red) which goes with a set of buzzer to indicate operation. External indicator light is available for user to set.
• Master card is needed to register new user cards on the unit.
• Door-opening time is available to set between 0-9 seconds as normal output. It is available to provide setting and releasing functions of anti-theft unit.
• All proximity cards or key rings must be registered before use.
• Special memory to prevent loss of data when power cut occurred.
• Special memory to prevent loss of data when power cut occurred.
• Maximum of 100 cards capacity to use. Suitable for household use or general access control or setting and releasing functions of anti-theft unit.
• Use of PC reinforced steel case and panel with anti-scratch coating and hardening treatment. Dark gray (standard color), gold and white frames are available.
• Customized proximity panel and frame color are available.
• Both upper and lower cases are fixed with special screws. Use of special tool to disassemble.
• Maximum proximity distance: 3cm(13.56MHz) (depending on types of card)
• Frequency: 13.56MHz. Power supply: 12VDC ±10%
• Operation temperature: 0~60。C; Humidity: 85%Rh max.
• Dimenisions：135(L) X 85(W) X 26(H) (mm)
• Weight：210g
• Certification: CE

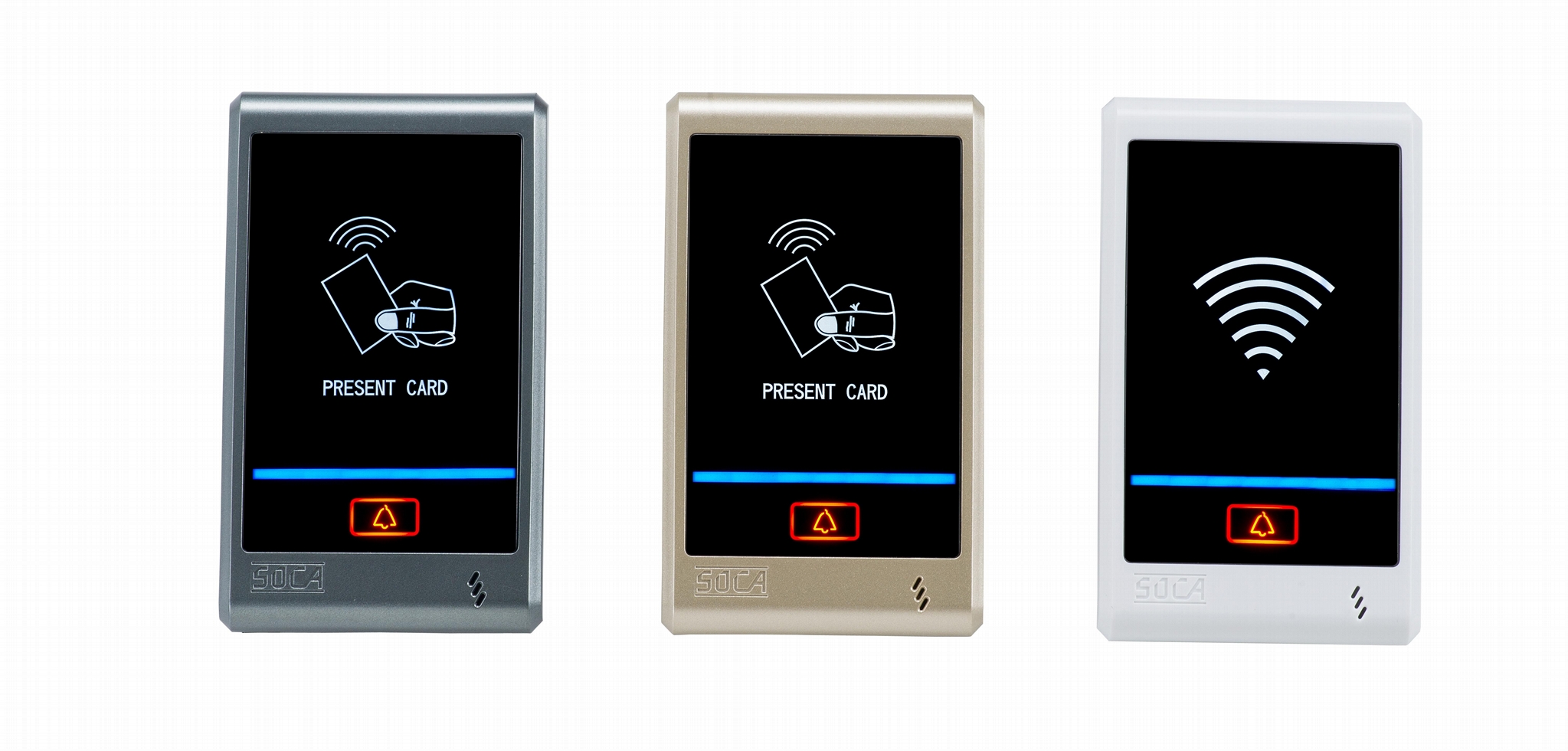

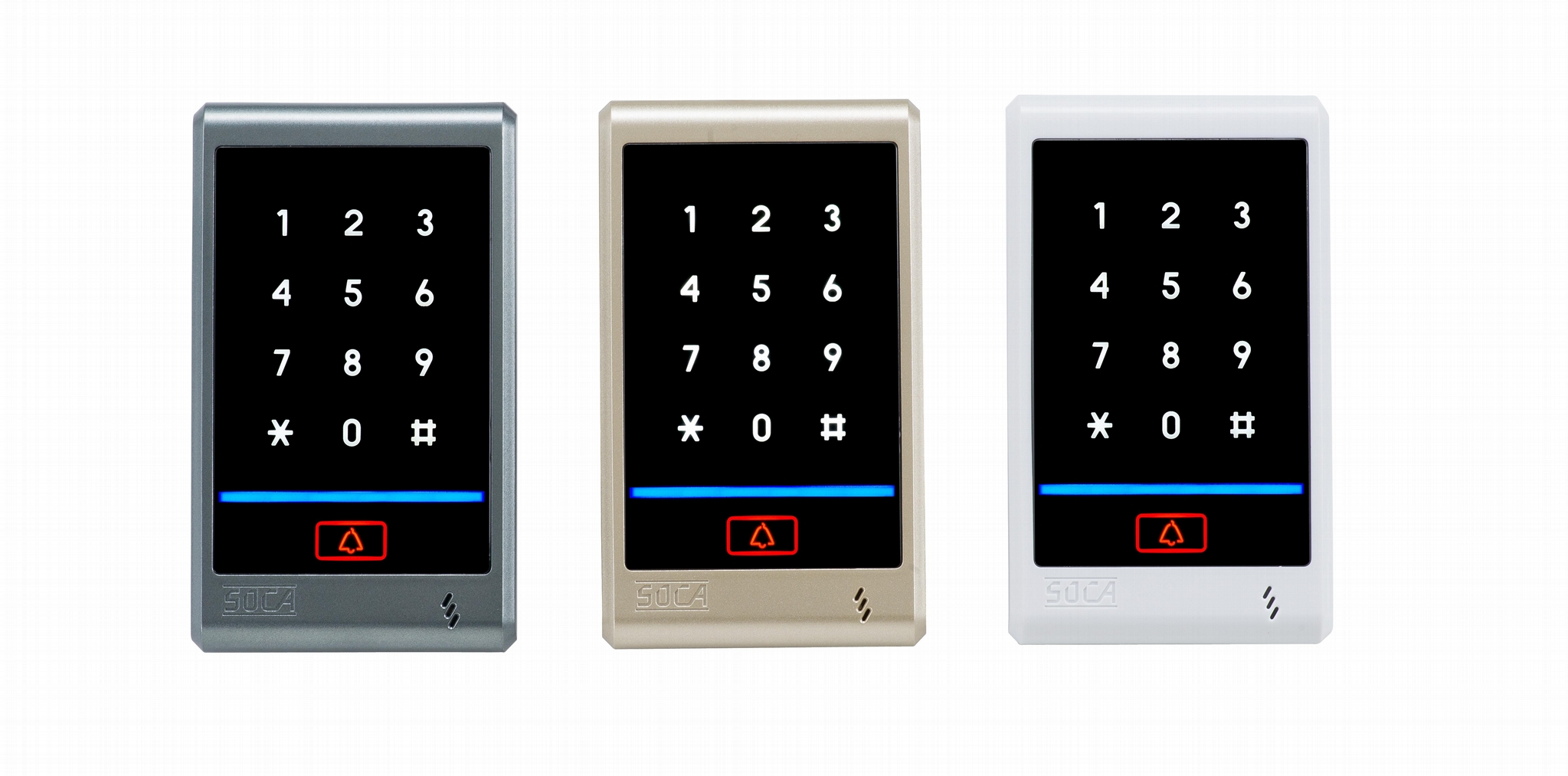

Product Image
