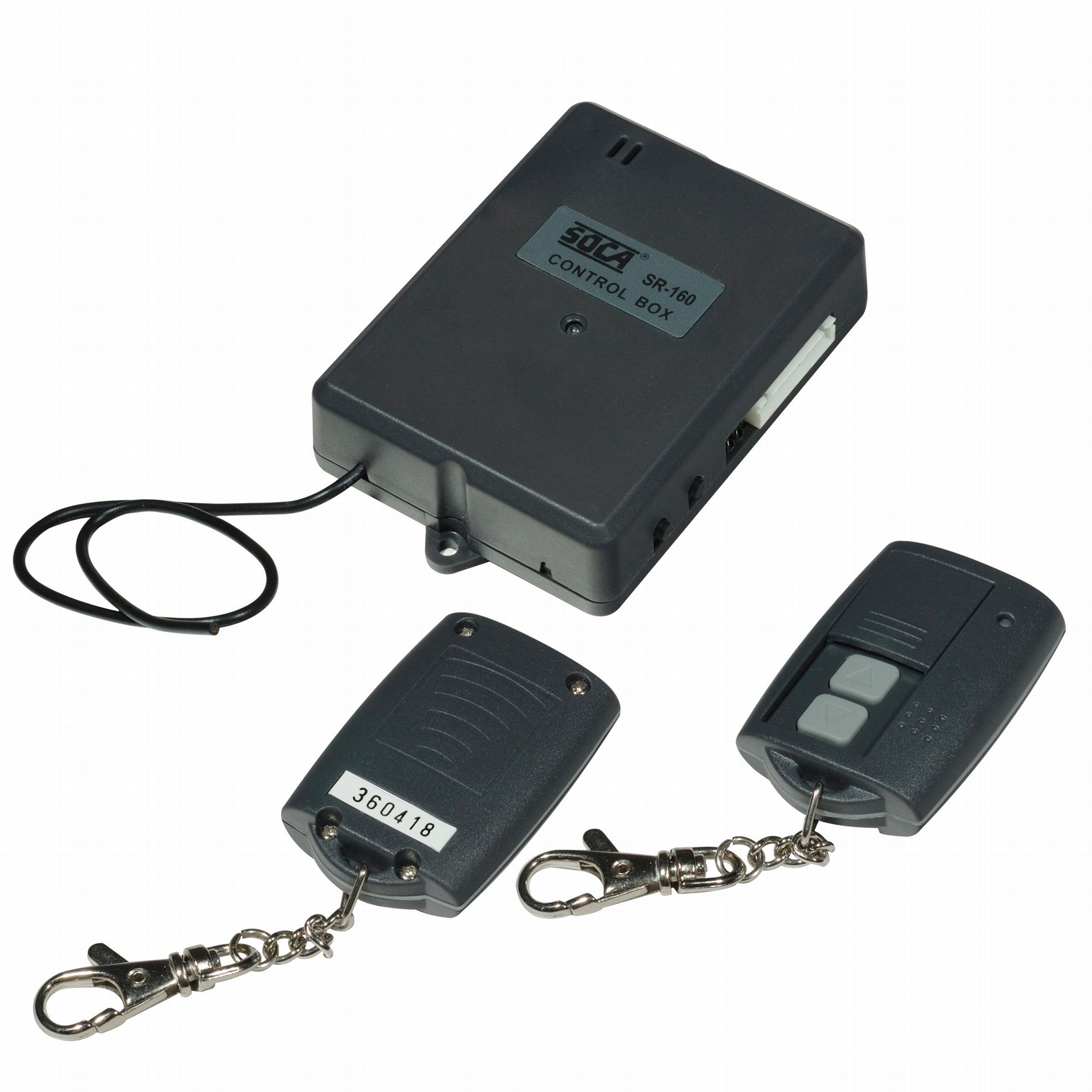

RF Remote Control Wireless Switch Receiver and Transmitter For Electromagnetic

RF Remote Control Wireless Switch Receiver and  Transmitter For  Electromagnetic

Model No.︰SR-160/20/30/35

Brand Name︰SOCA

Country of Origin︰China

Unit Price︰-

Minimum Order︰1 pc

Inquire Now

Product Description

Features

  • Use of KEELOQ code hopping technology by Microchip with 64 billion combinations which is guaranteed unable to break.
  • Add One New and Delete All Transmitter(SR-30) management functions.
  • Two REALY outputs. Adjustable Toggle state or Trigger state.

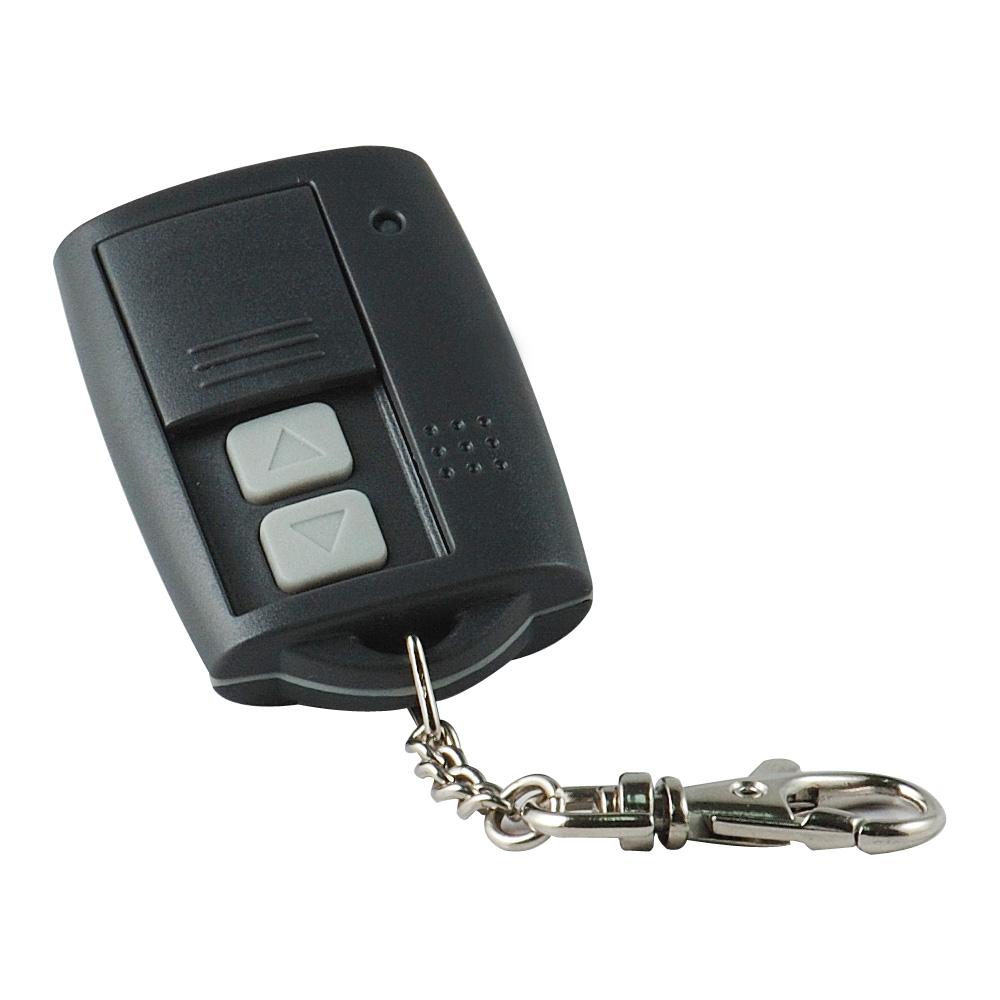

  • Transmitter (SR-30) is waterproof designed. Sliding upper case to prevent buttons being pressed accidentally. Built-in proximity chip(optional)
  • Special memory designed to prevent loss of data when power cut occurred.
  • Internal voltage supervisor and self-testing functions.
  • Suitable for electric lock or other remote control applications
  • The system can used for up to 80 remote controls.
  • Maximum remote control distance between the main unit and the transmitter is 50 m.(without any obstacles)
  • Contact rating: 1A@30VDC or 3A@24VDC or 2A@120VAC
  • Frequency: 315 MHz。Power Supply:DC12V ±10%。
  • Operation temperature: 0~60℃; Humidity: 85%Rh max.
  • Dimensions: 90L X 60W X 22D(mm)
  • Weight: Main unit 124g SR-30:30g

Safety/Quality Approvals

NCC authentication code :CCAB10LP2060T5,CCAB10LP2070T8

Product Image
